Crimp caps: a complete guide for pharmaceutical vial closures



When it comes to injectable pharmaceutical products, maintaining sterility and container closure integrity is non-negotiable. At the heart of this system lies a small but critical component: the crimp cap. Often overlooked, crimp caps are essential to securing vial stoppers and preserving the safety of parenteral drugs throughout manufacturing, transport, and administration. This guide is designed to provide pharmaceutical professionals, whether in production, quality assurance, or procurement, with a clear, technical overview of what crimp caps are, how they function, and why selecting the right cap matters for compliance and performance.



What are crimp caps and what is their purpose?

Crimp caps are aluminum seals used to fix elastomeric stoppers onto injection vials. Their main function is to secure the stopper in place, ensuring container closure integrity (CCI) and maintaining the sterility of the drug product.

According to current GMP guidelines, before crimping, the stopper sits in the vial but the system is not fully sealed. Once the cap is crimped, it applies uniform pressure on the stopper’s flange, locking it tightly against the vial neck. This final sealing step is essential in aseptic processes.

Main Functions of Crimp Caps:

  1. Maintain sterility by preventing microbial ingress
  2. Protect the stopper from mechanical stress or damage
  3. Ensure tamper evidence, especially with flip-off or push-off designs
  4. Allow secure drug access via needle puncture through the exposed stopper

Crimp caps are critical in pharmaceutical packaging where stability, safety, and regulatory compliance must be guaranteed at every stage.

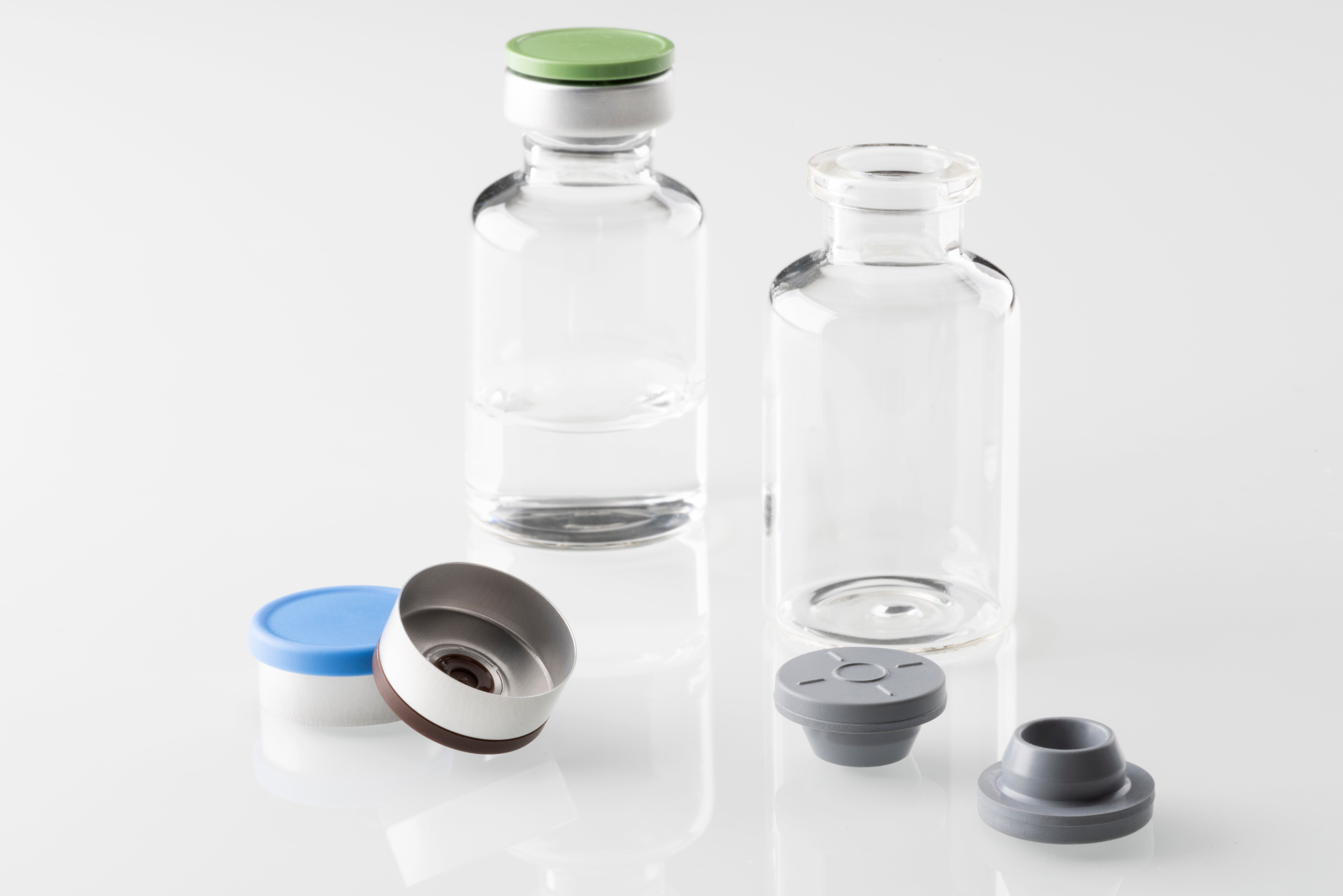

Ambiances 002-1

How are crimp caps constructed and what types exist?

Crimp caps are engineered to ensure compatibility with injectable vial systems and to withstand the physical and chemical stresses of pharmaceutical processing. Their design varies depending on the intended application—sterile drug delivery, tamper evidence, or user-friendly administration.



Base materials

Crimp caps consist of two main components:

  1. Aluminum Shell: The primary structure of the cap is made from aluminum, chosen for its mechanical strength, corrosion resistance, and compatibility with steam or gamma sterilization. The shell is deep-drawn and formed to precise dimensions, usually to fit standard vial neck sizes such as 11 mm, 13 mm, 20 mm, 32 mm, and 42 mm.
  2. Plastic Component (if applicable): For flip-off and push-off versions, a polypropylene insert or top disc is added. This plastic element enables easier handling and often serves as a tamper-evidence feature. The material must resist sterilization and alcohol swabbing without deforming or losing color.



Main types of crimp caps

Type

Description

Application

Plain aluminum cap

All-metal cap with no plastic components

Simple and cost-efficient sealing solution

Flip-off cap

Features a plastic top that is flipped off before needle access

Common choice for tamper evidence and visual cues

Push-off cap

Designed for easier removal, especially in clinical settings

Enhances patient comfort and product differentiation

Tear-off cap

Allows full removal of the aluminum seal

Used when direct access to the vial is required (e.g., lyophilized drugs)



EMA Pharma offers a full portfolio of crimp caps, available in bulk, Ready-to-Sterilize (RTS), and Ready-to-Use (RTU) versions. These are adapted for use in isolators, RABS lines, and high-containment environments, supporting both large-scale production and small-batch aseptic filling.



How are crimp caps manufactured?

High-quality crimp caps are manufactured through tightly controlled processes:

  1. Aluminum deep drawing to shape the shell
  2. Plastic injection molding (for flip-off and push-off versions)
  3. Assembly of metal and plastic components ((ISO 8-like for EMA Clean Caps)
  4. Visual inspection using camera systems for defects such as dents, color deviation, and foreign particles
  5. Packaging in clean environments (ISO 8-like for EMA Clean Caps)

These steps are validated under ISO 15378 (GMP for primary packaging) and include particle and bioburden monitoring.



What quality and regulatory standards govern crimp caps?

Regulatory standards

Crimp caps used in pharmaceutical settings must comply with various pharmacopeial and regulatory guidelines:

  1. EU-GMP, Annex 1: new requirements for the container closure system of sterile pharmaceutical products
  2. USP <1207>: Package Integrity Testing
  3. Ph. Eur. 3.2.9: Functional and chemical requirements for closures
  4. PDA TR-76: Defines visual defect criteria for aluminum seals
  5.      ISO 8362-6/7, ISO 8872, ISO 10985: Technical requirements for dimensions, flip-off force, and lacquer resistance
  6. ISO 8871 : Determination of released-particle count and Biological requirements and test methods
  7. ISO 11137 : Validation method of Gamma-irradiated RTU caps (ready-to-use)





Critical parameters

  1. Residual Seal Force: Ensures mechanical tightness post-crimping
  2. Tamper Evidence: Flip-off and push-off caps must show clear signs of opening
  3. Sterilization Compatibility: Caps must withstand steam, gamma, or H₂O₂ sterilization without deformation
  4. How are crimp caps integrated into the aseptic filling process?

Crimping is a critical step and must be completed promptly after stopper placement. Delays or improper crimping can compromise sterility.

GMP Guidelines for crimping:

  1. Crimping should occur under Grade A air conditions or within isolators
  2. Equipment must be designed to minimize particulate generation
  3. EMA, for instance, offers validated gamma-irradiated Ready-To-Use (RTU) caps to simplify integration into sterile processes
  4. What should you consider when selecting crimp caps?

Choosing the appropriate crimp cap is essential to ensure compatibility with your container closure system, compliance with regulatory standards, and smooth integration into aseptic manufacturing lines. The right cap supports long-term product stability, operational efficiency, and patient safety.



Below are the key criteria pharmaceutical companies, CDMOs, and project teams should evaluate during the selection process:

Criteria

Relevance

Vial size compatibility

The cap must match the vial neck diameter (e.g., 13 mm, 20 mm) to ensure proper fit and seal.

Stopper design

The height and flange thickness of the stopper influence the required crimping force.

Sterilization method

Cap materials must withstand the selected sterilization process (steam, gamma, H₂O₂) without deformation or degradation.

Automation compatibility

The cap must be compatible with existing capping and inspection equipment to avoid line disruptions.

Container closure integrity (CCI)

Performance should be validated using helium leak tests or Residual Seal Force (RSF) measurements.

Tamper-evidence

Required in many regulatory markets; also provides added confidence for end users in clinical settings.



Selecting a cap is not a one-size-fits-all decision. It must be based on the vial–stopper–cap system as a whole, the filling environment, and the regulatory expectations of the target market. Working with a qualified manufacturer like EMA Pharma ensures technical support, compliance documentation, and cap designs that meet both functional and operational requirements.



Why choose EMA Pharma as your crimp cap supplier?



EMA is a French-based, GMP-certified manufacturer specializing in aluminum crimp caps for injectable pharmaceuticals. Their strengths include:

  1. ISO 15378 certification and DMF registration (US, China)
  2. Over 90 years of know-how, serving 178 production sites worldwide
  3. RTS and RTU cap solutions for isolators and RABS
  4. Clean cap production in ISO 8-like environments
  5. In-process camera inspections and validated packaging protocols
  6. Strong ESG commitments and short, secure European supply chains



EMA’s caps are designed to meet strict international standards and are available in custom colors and formats to support product differentiation and compliance.

Conclusion

Crimp caps are more than mechanical closures, they are essential safeguards in the pharmaceutical supply chain. Choosing the right cap, from a qualified manufacturer like EMA Pharma, ensures the sterility, integrity, and compliance of injectable drugs across every stage of their lifecycle.
