Pharmaceutical vial closures: types, standards, and technical considerations

In injectable pharmaceutical production, the integrity of the primary packaging is as critical as the drug product itself. Pharmaceutical vial closures serve as the final barrier to maintain sterility, ensure compatibility, and protect the contents throughout shelf life and administration. This article provides a detailed, structured review of the key types of closures, their regulatory standards, and technical selection criteria.

I. What are the main types of closures used for pharmaceutical vials?

In parenteral drug packaging, the vial closure system plays a central role in preserving sterility, stability, and usability. A complete system typically includes an elastomeric stopper, an aluminum crimp seal, and, optionally, a plastic flip-off (or push-off) cap. Each of these elements contributes to ensuring the safety and reliability of the injectable drug product, and must be carefully selected based on compatibility with the formulation, manufacturing process, and intended route of administration.

Elastomeric Closures

Elastomeric stoppers serve as the primary seal of the vial and as the point of needle entry during drug administration. They are very important for maintaining a sterile barrier between the product and the external environment. The most commonly used elastomer types include bromobutyl and chlorobutyl rubber, known for their low extractables, chemical resistance, and pharmaceutical compatibility.

To enhance their performance, these stoppers may receive fluoropolymer coatings or be treated with silicone lubricants to improve machinability and reduce friction. In biotech applications, where protein stability is a concern, low-silicone or silicone-free options are often preferred to minimize interaction and particle generation.

Elastomeric components must also withstand terminal sterilization without compromising their physical integrity. Typical sterilization methods include autoclave (steam), gamma irradiation, ethylene oxide (EtO), and vaporized hydrogen peroxide (VHP), especially for Ready-to-Use (RTU) configurations.

Common formats include serum stoppers for injection vials, lyophilization stoppers for freeze-dried formulations, and plungers used in pre-filled syringes. Each format is designed to ensure resealability, dimensional stability, and compatibility with automated fill-finish equipment.

Aluminum Crimp Seals

Aluminum crimp seals provide the mechanical fixation that secures the stopper to the vial. During the crimping process, the aluminum ferrule applies a compressive force that locks the stopper in place, ensuring container closure integrity (CCI). Without proper crimping, sterility cannot be guaranteed.

Several configurations are available, including flat aluminum seals for basic applications and tear-off seals that allow for easy partial or full removal. These components must be resistant to sterilization, alcohol swabbing, and external environmental conditions. Their coatings and lacquers must comply with pharmacopeial and ISO standards to ensure product safety.

A vial is only considered sealed once the aluminum cap has been crimped. Any delay or deviation during this process can compromise product quality. At EMA Pharma, aluminum shells are produced in a controlled environment using deep-drawing and precision cutting techniques. Each part undergoes camera-based in-line inspection to detect defects like scratches, dents, or particulate contamination.

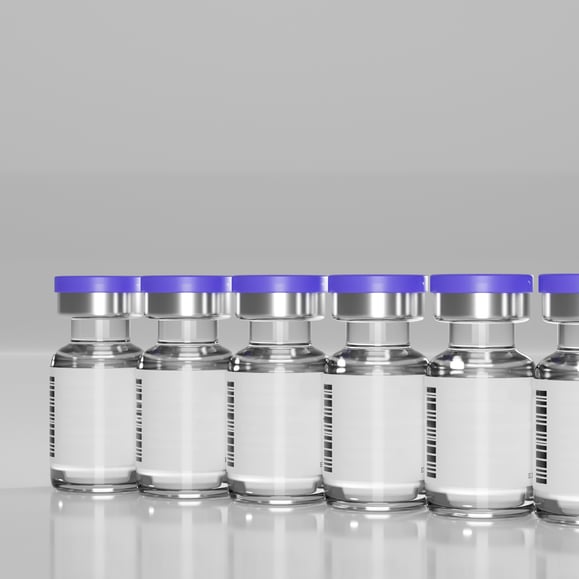

Flip-Off and Push-Off Caps

Flip-off and push-off caps are hybrid closures that combine an aluminum shell with a colored polypropylene disc, delivering both mechanical protection and visual identification. These caps not only protect the injection area from contamination but also provide tamper evidence : they must be removed before administration, offering a clear indication that the vial has not been previously accessed.

EMA Pharma offers a wide selection of colors for product differentiation and batch identification. Available styles include center tab caps for controlled removal, center hole formats for disinfecting the stopper before puncture, and complete tear-off versions that fully expose the stopper.

Depending on the use case, caps can feature overlapping skirts, which shield the vial neck and stopper flange, or non-overlapping designs, also called “Flush-designs”, which allow greater visibility and are better suited to automated handling or visual inspection.

EMA’s cap portfolio includes push-off caps (also called flip-off caps) for ergonomic removal and push-tear-off caps that combine secure sealing with easy access. All cap types are validated for compatibility with major sterilization processes: steam, gamma, beta irradiation, EtO, and H₂O₂. They are produced under ISO 15378 certification and meet GMP requirements for use in both industrial-scale production and clinical trial packaging.

II. Which regulatory standards apply to pharmaceutical vial closures?

Pharmaceutical vial closures must comply with a range of international standards to ensure they perform effectively as part of a sterile container system. These regulations focus on chemical compatibility, biological safety, and functional reliability. Both the United States Pharmacopeia (USP) and the European Pharmacopoeia (Pharm. Eur.) provide detailed requirements for elastomeric components used in injectable packaging.

USP and Pharm. Eur. Requirements

Vial closure systems are assessed against several key criteria. The physicochemical properties of elastomeric closures must remain stable over time and must not alter the drug’s composition. Tests cover parameters such as pH, UV absorbance, and the presence of reducing substances.

Closures must also demonstrate biocompatibility, evaluated through in vitro cytotoxicity and in vivo reactivity tests to ensure they do not trigger harmful biological responses when in contact with the drug or during administration.

In addition, the functional performance of closure systems is assessed through methods that simulate real-world conditions. These include tests for penetrability (ease of needle insertion), fragmentation (absence of rubber particles), and self-sealing capacity (ability to reseal after needle withdrawal).

The following pharmacopeial references apply:

1. USP <381> and <382>: Define requirements for elastomeric components and their functional suitability.
2. Eur. 3.2.9: Covers rubber closures for containers used in aqueous parenteral preparations.
3. USP <1207>: Focuses on Container Closure Integrity (CCI), including test methods and validation strategies.

Together, these references form the basis of regulatory compliance for closure systems in most global markets.

Visual Inspection and Nonconformity Classification

In addition to functional and chemical testing, visual inspection plays a vital role in quality assurance. The PDA Technical Report 76 (TR 76) establishes standardized definitions and categories of visible defects for both elastomeric components and aluminum seals.

This classification system divides nonconformities into:

1. Critical defects, which pose a direct risk to patient safety or drug sterility.
2. Major defects, which affect the function or integrity of the closure without necessarily compromising safety.
3. Minor defects, which are typically cosmetic in nature but may still indicate process issues.

By adopting the PDA TR 76 framework, manufacturers and quality teams can ensure consistent visual quality standards across batches and suppliers.

III. How is container closure integrity (CCI) verified and maintained?

Container Closure Integrity (CCI) is a foundational requirement for sterile drug packaging. It ensures that no contaminants - including microorganisms, gases, or moisture - can enter the vial once sealed. CCI must be verified during development, qualification, and routine production to confirm that the packaging system provides an effective sterile barrier over the product’s intended shelf life.

Integrity Testing Methods

There are two main categories of CCI testing: deterministic and probabilistic.

Deterministic methods are preferred under USP <1207> because they provide quantifiable and reproducible results. These include:

1. Helium leak detection, which uses mass spectrometry to measure helium escaping from microscopic leaks.
2. Laser-based headspace analysis, which tracks changes in internal gas concentrations to detect leakage.
3. Pressure decay and vacuum decay techniques, which evaluate the stability of sealed vials under pressure differentials.

In contrast, probabilistic methods such as dye ingress or microbial challenge tests rely on observation and are more variable in nature. While still used in some validation protocols, these are considered less precise and are increasingly replaced by deterministic approaches.

Maintaining high CCI standards throughout the product life cycle is essential for regulatory compliance and patient safety.

EMA Pharma’s Approach

EMA Pharma integrates CCI assurance directly into its product design and manufacturing processes. All aluminum seals and flip-off caps undergo camera-based in-line inspections, which verify key parameters such as crimp alignment, seal uniformity, and the absence of visible defects that could compromise integrity.

Beyond automated quality control, EMA offers technical support to clients for validating and optimizing CCI, including:

1. Selection of appropriate closure configurations
2. Guidance on deterministic test methods
3. Assistance with crimping equipment settings and tooling design to achieve consistent sealing force

By combining robust inspection systems with technical expertise, EMA helps pharmaceutical manufacturers achieve and maintain high CCI standards, whether for large commercial production or smaller clinical batches.

IV. What technical criteria guide the selection of vial closures?

Sterilization Compatibility

Closures shall be compatible with sterilization methods, such as gamma- and steam sterlization.

EMA Push-Off caps, for example, are validated for all above sterilization methods.

Compatibility with Fill-Finish Processes

Closures must:

1. Withstand capping force without deformation
2. Maintain integrity under vacuum
3. Avoid particle generation

Crimping is a critical step, European GMP Annex 1 recommendsrecommends rapid crimping post-stopper insertion, under Grade A conditions.

Container Materials and Drug Interaction

Closures must not interact with the drug product. Key parameters:

1. Extractables and leachables (USP <1663>, <1664>)
2. Absence of silicone transfer
3. Controlled particulate and bioburden levels

EMA offers Ready-To-Use (RTU) caps with validated sterilization, bioburden monitoring, and optional Certificate of Analysis.

V. How does EMA Pharma address quality and supply chain reliability?

Standards and Certifications

EMA Pharma ensures compliance through:

1. ISO 15378 certification
2. US & China Type III DMF for Push-Off caps
3. validated gamma sterilization process.


   Supply Chain Security

EMA's European manufacturing and short supply chains align with pharma’s need for:

1. Secured sourcing
2. Lower risk of disruption
3. Better lead time management


   Customization and Technical Support

EMA provides:

1. Custom color coding
2. Technical assistance for CCI and machine compatibility
3. Tailored packaging formats (bulk, RTS, RTU)


Conclusion

Choosing the right pharmaceutical vial closure involves navigating technical, regulatory, and operational requirements. As a French manufacturer dedicated exclusively to aluminum caps and closure systems for parenteral drugs, EMA Pharma combines 90+ years of expertise, stringent compliance, and client-focused service to support your sterile drug development and production needs.
